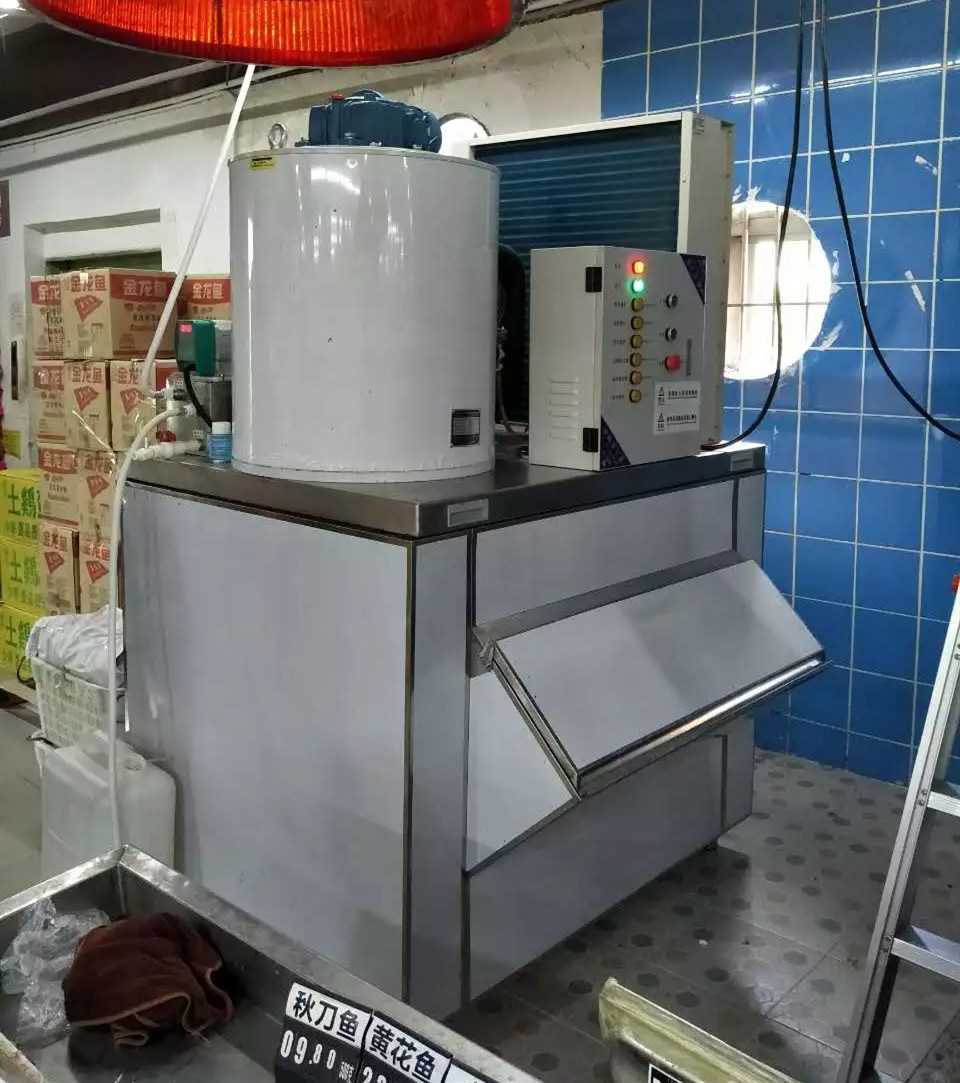

1Ton / 24hrs Fresh Water 3P Commercial Flake Ice Machine

Compare to other supplier of flake ice machines in the industry, Easyman ICE SYSTEMS owns its unique technology and get much more better performance.
1. Superb Stability and reliability, long use life.
2. User-friendly design, intellectualized PLC touch-screen controller
The intellectualized PLC touch-screen control system, user-friendly designed, which is very convenient for operator. The intellectualized historical failure record function and guidance of troubleshooting makes easier and simple operation and maintenance. The running time setting function convenienced operator, saving energy and reduce cost.
3. Sub-cooled ice, excellent fast cooling
Super cold, dry, crisp, 100% subcooled ice with greater surface area and exceptional cooling power.
4. Low maintenance and operation cost
Super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flakers.
5. Energy-efficient and cost saving

Flake ice function:

1.Large contact area: As its flat and thin shape, it has got the largest contact area among all types of ice. The larger its contact area is, the faster it cools other stuff. In comparison with 1 ton of cube ice, 1 ton of flake ice has 1799 sqm of contact area while 1 ton of cube ice only has 1383 sqm, therefore the flake ice has got much better cooling effects than cube ice.
2. Low cost of producing: The producing of flake ice is very economical, it only requires 1.3RT refrigerating effect to make 1 ton of ice from 16C water.
3. Perfect in food cooling:Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process,this nature has made it the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.
4.Thoroughly mixing: Flake ice can become water quickly through the rapid heat exchanging with products, and also supply the moisture for products to be cooled.
5. Convenient for delivery: Because the flake ice fairly dry, it will not stick with others during delivery or storage.
6.Flake ice low temperature: -5℃~-8℃; Flake ice thickness: 1.8-2.5 mm, can be used directly for food fresh without ice crusher any more, saving cost, labor and time.
7.Fast ice making speed: Sumstar flake ice machine can produce ice within 3 minutes after starting it, do not need extra person to take off and get the ice.

Specification:

Our previous projects:

Detailed description:

	Compressor capacitance The running capacitor is connected in series on the secondary winding. The main function is to generate a rotating magnetic field with the main winding to increase the power.
304 stainless steel evaporator The static fixed vertical evaporator design avoids problems such as leakage of the refrigeration system caused by the wear of the dynamic seal during rolling operation, so it is durable and the refrigeration system is not easy to leak.
	Circulating water tank The built-in pipe of the recirculating water tank can be drained or drained, and the interface is clear.
Easy to oprate electric control box The electric control box controls the armature button to control the power transmission of the flake ice machine

Package and Loading:

Our Services:

All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.

a, Before sending the machine, we will test and adjust, so you can use directly when you get it.
b, Operation video & instruction will be sent to clients, to help them use the machines better.

Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
