Our aim at RUIBEI is to be recognized as THE BEST CHOICE and BUSINESS PARTNER.
6 Years
| Ask Lasest Price | |
| Brand Name : | EASYCOOL |
| Model Number : | ZBJ-3300T |
| Certification : | CE, RoHS |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 5000 Set/Sets per Month |
| Delivery Time : | 10 days |
Bar ice maker machine 2 tons ice cube machine
1, Unique patented siphon drainage way can make the scale not be piled up and make the ice more crystal clear.
2, Overflow drainage can constantly drain scale at the bottom of water tank from the machine and make ice more transparent and hard. It lower the ice center temperature and prolonged the solvent time, so the ice drink will be more refreshing, crisp and tasting fine.
3, By humanity design for cold light lamp, people can take ice freely under the weak light without disturbing others. It can easily add ultraviolet germicidal lamp to make the ice more cleaning and let people more healthy as well as the machine more environmentally friendly.
4, Vertical Ice Machine has a elegant appearance with the design of arc shape door and door frame.
5, Vertical Ice Machine has an elegant appearance with the design of arc shape door
6, Ice Machine is very convenient for maintaining to get off the front panel by just easily unbolting off the four screws and frame structure can
quickly remove the right and left side panel, roof and back panel.
7, Optional intelligent voice system can report faults and makes more convenient for the usage and maintenance.
Sepcifications:
| Product dimention(W*D*Hmm) | 1230*1240*2200 |
| Packing dimention(W*D*Hmm) | 1370*1450*2400 |
| Ice shape | cube/dice |
| Standard Ice size(W*D*Hmm) | 22*22*22 |
| Testing water temp. | 10 Celsius degree |
| Testing Ambient temp. | 15 Celsius degree |
| Voltage/frequency | 220V/1N/50HZ |
| Power | 7000w |
| Output | 1500kgs |
| Ice Bin(Ice storage) | 800kgs |
| Compressor | Embraco R22/R404a |
| Condensing unit | water cooling |
| Condensing fan | EBM(German) |
| Expansion Vale | Danfoss(Demark) |
| Solenoid Vale | Saginomiya (Japan) |
| Water Pump | EBM(German) |
| Filter | Danfoss(Demark) |
| IC Mother board | Paxike(Kongkong) |
| Plug | for optional |
| Package | Carton+wooden frame |

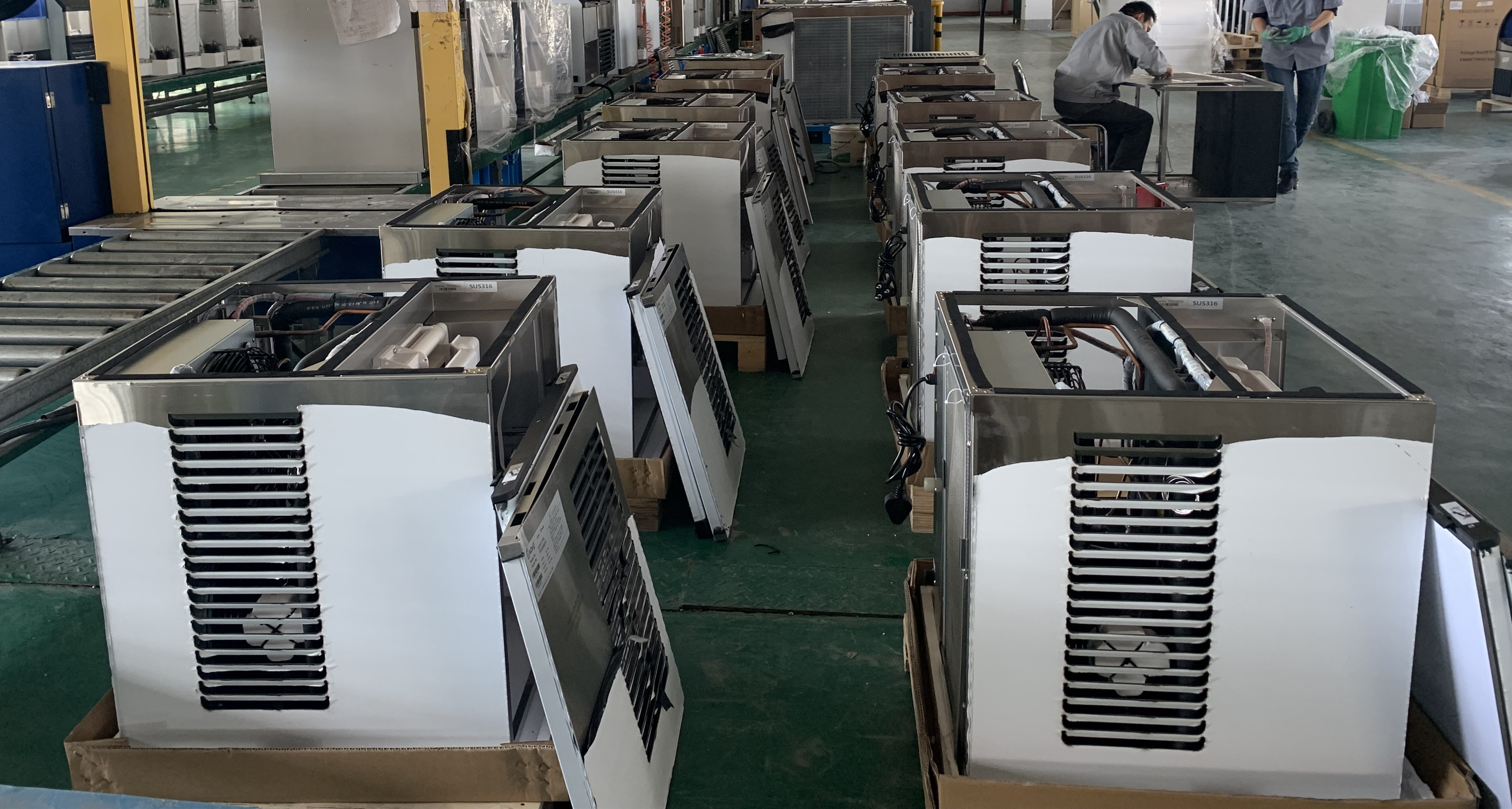

Product display:
| Model | Power supply | ice shape | max ice output | storage capacity | Overall Size(mm) |
| Vertical ice maker (Air cooled) | |||||
| LB55S | 220V/260W | square | 25kg | 20kg | 500*400*840mm |
| LB80S | 220V/320W | square | 40kg | 20kg | 500*400*840mm |
| LB100S | 220V/350W | square | 50kg | 27kg | 500*550*840mm |
| LB120S | 220V/360W | square | 60kg | 27kg | 500*550*840mm |
| LB150S | 220V/490W | square | 70kg | 40kg | 600*670*900mm |
| LB175S | 220V/510W | square | 80kg | 40kg | 600*670*900mm |
| LB210S | 220V/750W | square | 100kg | 40kg | 600*670*900mm |
| LB300S | 220V/850W | square | 130kg | 40kg | 600*670*900mm |
| Separated ice maker (water cooled/Air cooled) | |||||
| LB300T | 220V/800W | Square | 140kg | 100kg | 570*830*1330mm |
| LB400T | 220V/900W | Square | 180kg | 140kg | 570*830*1560mm |
| LB500T | 220V/1000W | Square | 230kg | 200kg | 770*890*1560mm |
| LB600T | 220V/1250W | Square | 270kg | 200kg | 770*890*1560mm |
| LB700T | 220V/1350W | Square | 330kg | 200kg | 770*890*1560mm |
| LB1000T | 220V/2350W | Square | 480kg | 290kg | 770*890*1650mm |
| LB1500T | 380V/3000W | Square | 700kg | 455kg | 1230*930*1880mm |
| LB1950T | 380V/4000W | Square | 900kg | 455kg | 1230*930*1930mm |
| LB2200T | 380V/4500W | Square | 1000kg | 455kg | 1230*930*1980mm |
| LB3300T | 380V/7000W | Square | 1500kg | 800kg | 1230*1240*2200mm |
| LB4400T | 380V/8500W | square | 2000kg | 800kg | 1230*1240*2200mm |
| Remark : | |||||
| 1.Inlet water 16 °C ,ambient temperature 35 °C . | |||||
| 2.Ice cube size :22*22*22mm,Weight is 10gr,Bigger one is need to customise from 15gr-30gr | |||||
3.Voltage :380V/220V ;50HZ/60HZ . | |||||
|
|
