Our aim at RUIBEI is to be recognized as THE BEST CHOICE and BUSINESS PARTNER.
6 Years
| Ask Lasest Price | |
| Brand Name : | EASYCOOL |
| Model Number : | ZBJ-2200T |
| Certification : | CE, RoHS |
| Price : | Negotiation |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 5000 Set/Sets per Month |
| Delivery Time : | 10 days |

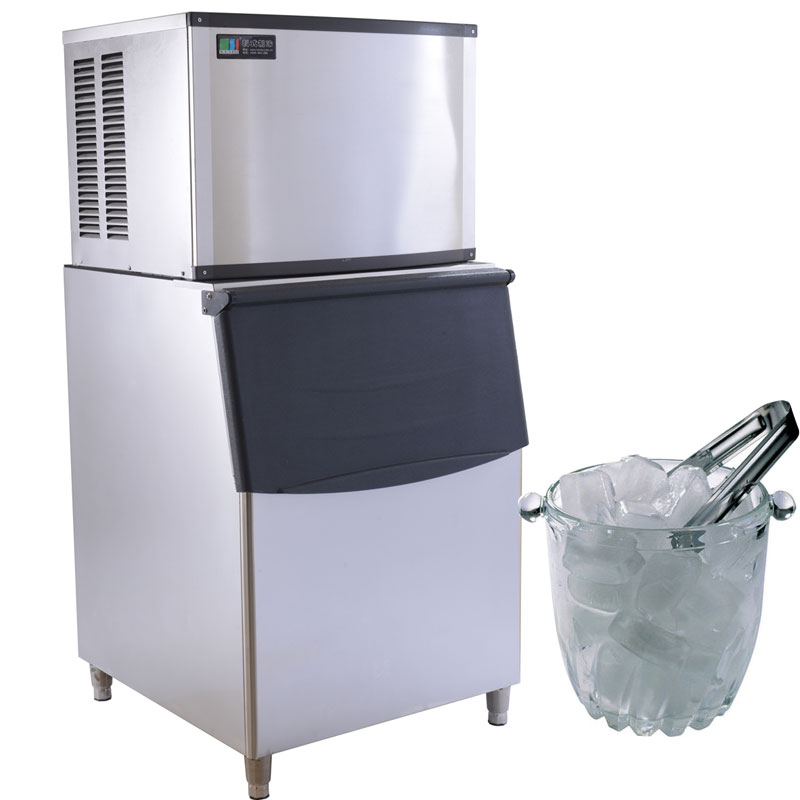

Stainless Steel Ice Cube Maker Machine For Restaurant / Hotels / Supermarket
Main components of machine:
Compressor Aspera/Tecumshe (Italy/Frence)
Expanding Valve Danfoss(Denmark)
Dry Filter Danfoss(Denmark)
Electromagnetic Valve Saginomiya(Japan)
Cooling Fan EBM(Germany)
Water pump Morrill(America)
Control Board ICEDER(China)
Sepcifications:
| Product dimention(W*D*Hmm) | 1230*930*1980 |
| Packing dimention(W*D*Hmm) | 1450*980*2180 |
| Ice shape | cube/dice |
| Standard Ice size(W*D*Hmm) | 22*22*22 |
| Testing water temp. | 10 Celsius degree |
| Testing Ambient temp. | 15 Celsius degree |
| Voltage/frequency | 380V/1N/50HZ |
| Power | 4500W |
| Output | 1000kgs |
| Ice Bin(Ice storage) | 455kgs |
| Compressor | Embraco R22/R404a |
| Condensing unit | water cooling |
| Condensing fan | EBM(German) |
| Expansion Vale | Danfoss(Demark) |
| Solenoid Vale | Saginomiya (Japan) |
| Water Pump | EBM(German) |
| Filter | Danfoss(Demark) |
| IC Mother board | Paxike(Kongkong) |
| Plug | for optional |
| Package | Carton+wooden frame |
product details:
More models:
| Model | Power supply | ice shape | max ice output | storage capacity | Overall Size(mm) |
| Vertical ice maker (Air cooled) | |||||
| LB55S | 220V/260W | square | 25kg | 20kg | 500*400*840mm |
| LB80S | 220V/320W | square | 40kg | 20kg | 500*400*840mm |
| LB100S | 220V/350W | square | 50kg | 27kg | 500*550*840mm |
| LB120S | 220V/360W | square | 60kg | 27kg | 500*550*840mm |
| LB150S | 220V/490W | square | 70kg | 40kg | 600*670*900mm |
| LB175S | 220V/510W | square | 80kg | 40kg | 600*670*900mm |
| LB210S | 220V/750W | square | 100kg | 40kg | 600*670*900mm |
| LB300S | 220V/850W | square | 130kg | 40kg | 600*670*900mm |
| Separated ice maker (water cooled/Air cooled) | |||||
| LB300T | 220V/800W | Square | 140kg | 100kg | 570*830*1330mm |
| LB400T | 220V/900W | Square | 180kg | 140kg | 570*830*1560mm |
| LB500T | 220V/1000W | Square | 230kg | 200kg | 770*890*1560mm |
| LB600T | 220V/1250W | Square | 270kg | 200kg | 770*890*1560mm |
| LB700T | 220V/1350W | Square | 330kg | 200kg | 770*890*1560mm |
| LB1000T | 220V/2350W | Square | 480kg | 290kg | 770*890*1650mm |
| LB1500T | 380V/3000W | Square | 700kg | 455kg | 1230*930*1880mm |
| LB1950T | 380V/4000W | Square | 900kg | 455kg | 1230*930*1930mm |
| LB2200T | 380V/4500W | Square | 1000kg | 455kg | 1230*930*1980mm |
| LB3300T | 380V/7000W | Square | 1500kg | 800kg | 1230*1240*2200mm |
| LB4400T | 380V/8500W | square | 2000kg | 800kg | 1230*1240*2200mm |
| Remark : | |||||
| 1.Inlet water 16 °C ,ambient temperature 35 °C . | |||||
| 2.Ice cube size :22*22*22mm,Weight is 10gr,Bigger one is need to customise from 15gr-30gr | |||||
3.Voltage :380V/220V ;50HZ/60HZ . | |||||
Ice-making effect:
Quality and Safety:
We have implemented a strict and complete quality control system,
which ensures that each product can meet quality requirements of
customers. From the first step of collecting raw material to the
last step of shipment, every single step, we all spend a lot of
input to strictly inspect the quality and finally satisfy our
customers.
Factory manager has 30 years kitchen products production experience. Factory R&D and QC team are rich experienced in kitchen products production line.
Application of ice machine:
FQA:
1.Q:What is the raw material of your products?
A:As general,the raw material of steel is 304# 430#.
2.Q:What is the term of payment?
A:As general,less than 3000USD,100%T/T in advance.more than
3000USD,30%T/T in advance,balance before shipment.
3.Q:What is the delivery time?
A:It depends on the order quantity and racking types.General
speaking,if purchase our standard machine,the delivery time is
within 7days.
4.Q:May i know the sratus of my order?
A:Yes.We will send you information and photos st different
production stage of your order.You will get the latest information
in time.
5.Q:Can weput our own logo on the machine?
A:Yes,we can do OEM for you.
6.Q:What is the warrantr?
A:One year for the whole unit.in warranty time,we offer parts for
free(except consumption parts like rings and beaters).the shipping
cost 50%/50%.and call or internet support
to help customer to maintain it.
|
|
