Good Quality Small Cold Storage Room for Fish Meat
The cold storage is a warehouse creating the suitable humidity and
cold condition with the use of cooling facility which is also known
as the refrigerated storage. It is a place to process and store the
products. It can get rid of the influence of the climate , prolong
the storage period of various products to adjust the market supply.
Easyman cold room solutions is mainly used for the
constant-temperature storage of food, dairy products, meat, aquatic
products,poultry, fruit and vegetable, cold drink, flower, green
plant, tea,medicine, chemical raw material, electronic instrument,
etc. Easyman team would like to provide you best one-stop
solutions.
Options:
Refrigeration system | Compressor: Bitzer, Copeland etc for choice, |
Electric system | Siemens electric components or the other brand for choice. |
Insulation panel, cold store panels | Material: Polyurethane (PU), metal sheet. |
Cold store door | Sliding door and swing door for choice, |
1.PU Sanddwich Panel:
PU Sanddwich Panel
1. The panel is coated with stainless steel and plastic color
steel.The metal plate and the heat insulating core material are
injected with heavy pressure injection machine one time and bolding
.Strengthen the strength and rigidity of the board.
2.Adopt the concave and convex groove form,and the inner eccentric
fishing lock box is use and two boards are sealed with a sealing
material,so that our panel have good heat insulation.
Cold Room Panel (fish/meat/vegetable/medical using cold room) | |
Thickness of cold storage panel | Application temperature |
50mm | Temperature ≥10°C |
75mm | Temperature -5°C or above |
100mm | Temperature -5'C~-20°C or above |
150mm | Temperature -18'C~-35°C or above |
200mm | Temperature ≤-35°C |

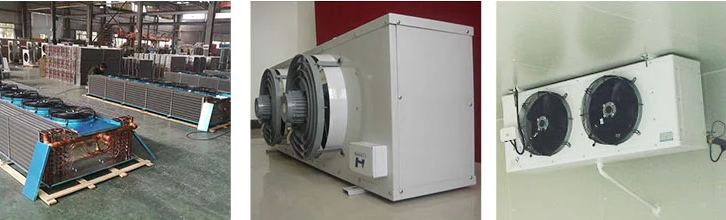

2.Condensing Unit:
Main Features
1. Save energy ,provide cooling capacity on demand,and operate at
half load.
2.Modular combination, compact structure and small footprint
3.Automatic control system,simple operation.
4.Wide range of applications,total power from 40HP to 640HP
,temperature 12.5℃ to -60℃.
5. Divided into high temperature screw unit ,low temperature screw
unit,integral chiller,single machinedouble stage screw unit
,suitable for various occasion.
3.Air Cooler:
1.Scientific design improves the heat exchange efficiency.
2. The shell is made of high-quality galvanized sheet spray or
stainless steel,which is corrosion-resistant and beautiful in
appearance.
3.Hig-quality stainless steel electric heating tubes are
distributed on the evaporator core and the water tray ,and thr
defrosting effect is good
4.Products can be customized.
4.Cold Room Door:
1.PU sandwich panel cold room door
2.Good heat preservation performance
3.Thickness:100mm/150mm/200mm
4. Classification: manual or electric sliding door, manual swing
door,self-closing door, industrial sliding door,half buried door
and other types according to customers.
5.Easy to install
5.Other Accessories:
6.Delivery and installation:
Cold storage installation steps:
Step 1. Assembled all floor panels
Step 2. Assemble the wall panels
Step 3. Put up the roof panels and hang the air cooler to the roof
panel
Step 4. Assemble the door[sliding door and hinged door optional]
Step 5. Fix the compressor unit at a place with good ventilation
Step 6. Connect the compressor unit and air cooler, vacuum the
system and charge refrigerant
Step 7. All cable finally connected to the electricity box, get the
power connected
Step 8. Finished and get ready for turning on after the compressor
have been warmed up
|
|
