Our aim at RUIBEI is to be recognized as THE BEST CHOICE and BUSINESS PARTNER.
6 Years
| Ask Lasest Price | |
| Brand Name : | EASYCOOL |
| Model Number : | SR-2M |
| Certification : | ISO2001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 50000pcs/year |
| Delivery Time : | 10 days |
Supermarket Frozen Food Storage Room PU Modular Chiller
The cold storage is a warehouse creating the suitable humidity and
cold condition with the use of cooling facility which is also known
as the refrigerated storage. It is a place to process and store the
products. It can get rid of the influence of the climate , prolong
the storage period of various products to adjust the market supply.
Easyman cold room solutions is mainly used for the
constant-temperature storage of food, dairy products, meat, aquatic
products,poultry, fruit and vegetable, cold drink, flower, green
plant, tea,medicine, chemical raw material, electronic instrument,
etc. Easyman team would like to provide you best one-stop
solutions.
Options:
Refrigeration system | Compressor: Bitzer, Copeland etc for choice, |
Electric system | Siemens electric components or the other brand for choice. |
Insulation panel, cold store panels | Material: Polyurethane (PU), metal sheet. |

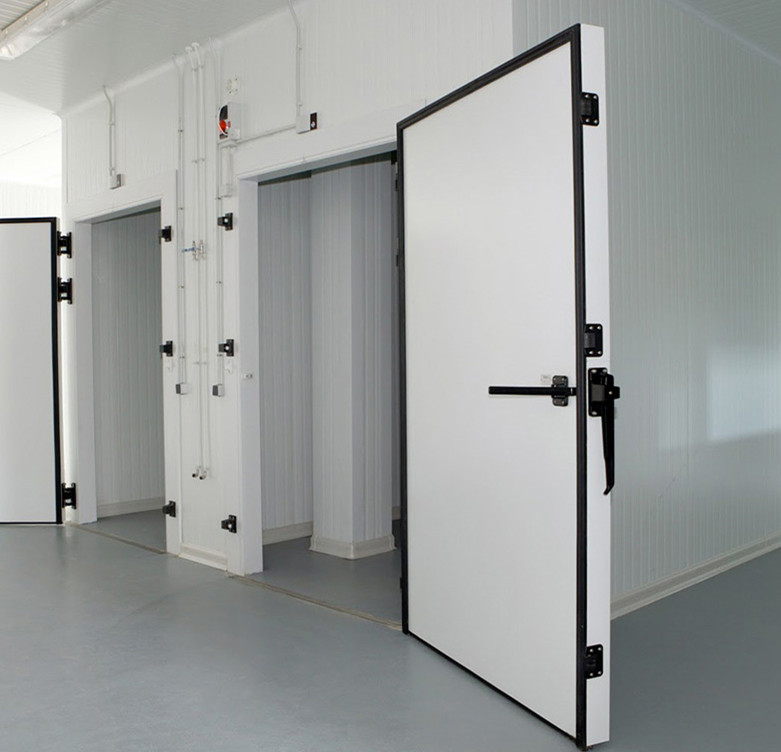

Cold store door | Sliding door and swing door for choice, |

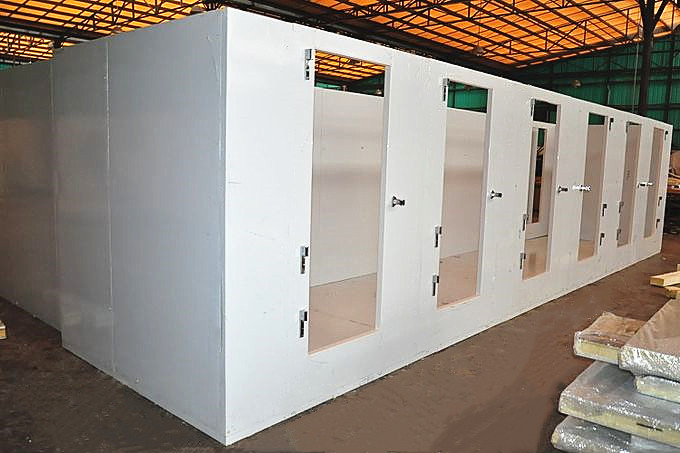

Our previous projects:
Detailed description:
PU Sanddwich Panel
1. The panel is coated with stainless steel and plastic color
steel.The metal plate and the heat insulating core material are
injected with heavy pressure injection machine one time and bolding
.Strengthen the strength and rigidity of the board.
2.Adopt the concave and convex groove form,and the inner eccentric
fishing lock box is use and two boards are sealed with a sealing
material,so that our panel have good heat insulation.
Cold Room Panel (fish/meat/vegetable/medical using cold room) | |
Thickness of cold storage panel | Application temperature |
50mm | Temperature ≥10°C |
75mm | Temperature -5°C or above |
100mm | Temperature -5'C~-20°C or above |
150mm | Temperature -18'C~-35°C or above |
200mm | Temperature ≤-35°C |

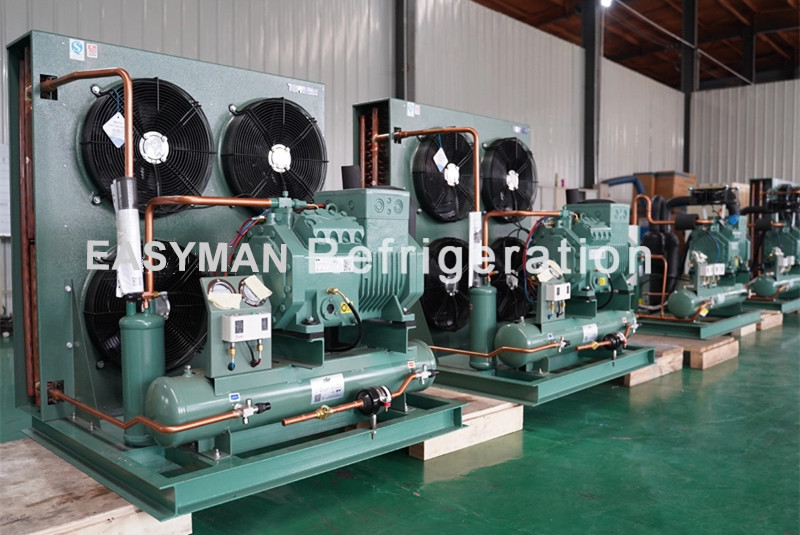

Condensing Unit
Main Features
1. Save energy ,provide cooling capacity on demand,and operate at
half load.
2.Modular combination, compact structure and small footprint
3.Automatic control system,simple operation.
4.Wide range of applications,total power from 40HP to 640HP
,temperature 12.5℃ to -60℃.
5. Divided into high temperature screw unit ,low temperature screw
unit,integral chiller,single machinedouble stage screw unit
,suitable for various occasion.
Packing and Delivery:
|
|
